AGGREGATE
GENERAL AND GEOMETRICAL PROPERTIES OF AGGREGATES
PRODUCT CATEGORY
AGGREGATE IMPACT VALUE (AIV) TESTING APPARATUS
| 48-IV455150 | Aggregate Impact Value (AIV) Testing Apparatus |
ORIGIN: TÜRKİYE
Standards: BS 812:112
| 48-IV455150 | Aggregate Impact Value (AIV) Testing Apparatus |
ORIGIN: TÜRKİYE
Standards: BS 812:112

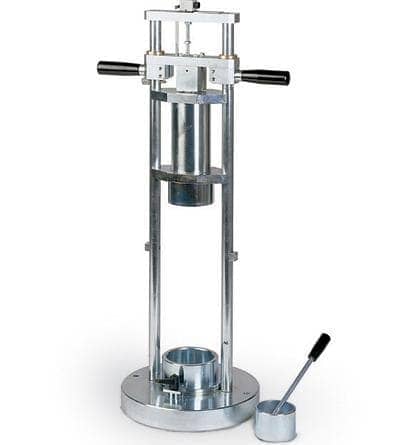

AGGREGATE IMPACT VALUE (AIV) TESTING APPARATUS
The Aggregates impact value (AIV) apparatus is used to determine the aggregate impact value which provides a relative measure of the resistance of an aggregate to sudden shock or impact.
The counter fitted to the machine automatically records the number of blows delivered to the sample. AIV is made from steel protected against corrosion.
Aggregate Impact Value (AIV) Apparatus is supplied complete with;
• Impact Value Frame with Counter
• Cylindrical Measure, Ø 75 mm,
• Steel Tamping Rod, Ø 16x600 mm
Technical Specifications for AGGREGATE IMPACT VALUE (AIV) TESTING APPARATUS
| Dimensions | 440x320x870 mm |
|---|---|
| Weight (approx) | 55 kg |
