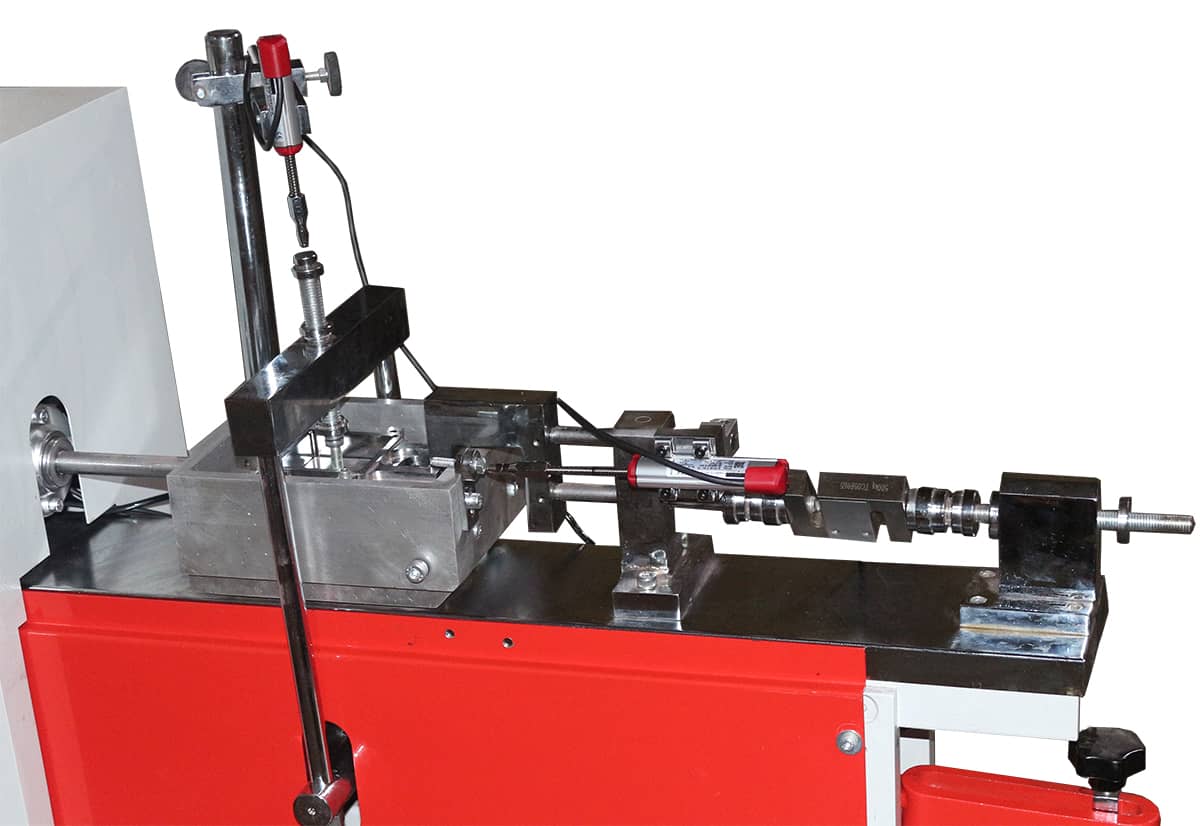

AUTOMATIC DIRECT RESIDUAL SHEAR MACHINE

The Automatic direct residual shear machine is capable of performing the consolidation and shearing phases of a standard direct shear and residual shear test under full automatic control.

The system consists of a computer-controlled unit that utilizes micro-stepper motors to apply the vertical and horizontal loads to the soil specimen. The system is capable of doing a consolidation process at 32 phase automatically.

Horizontal shearing can be applied at a specified rate of deformation or at a specified rate of horizontal force change, or at a specified set of force steps of a specified duration.

The system is capable of displaying the current status of a test and graphically portraying the progress of the test in real time. The system includes the capability for the operator to alter the test process and conditions at any stage of the test.

The Automatic Direct Residual Shear Test Machine is supplied complete with;
• Load Cell 5 kN
• Vertical Displacement Sensor (10x0.001 mm)
• Horizontal Displacement Sensor (25x0.001 mm)

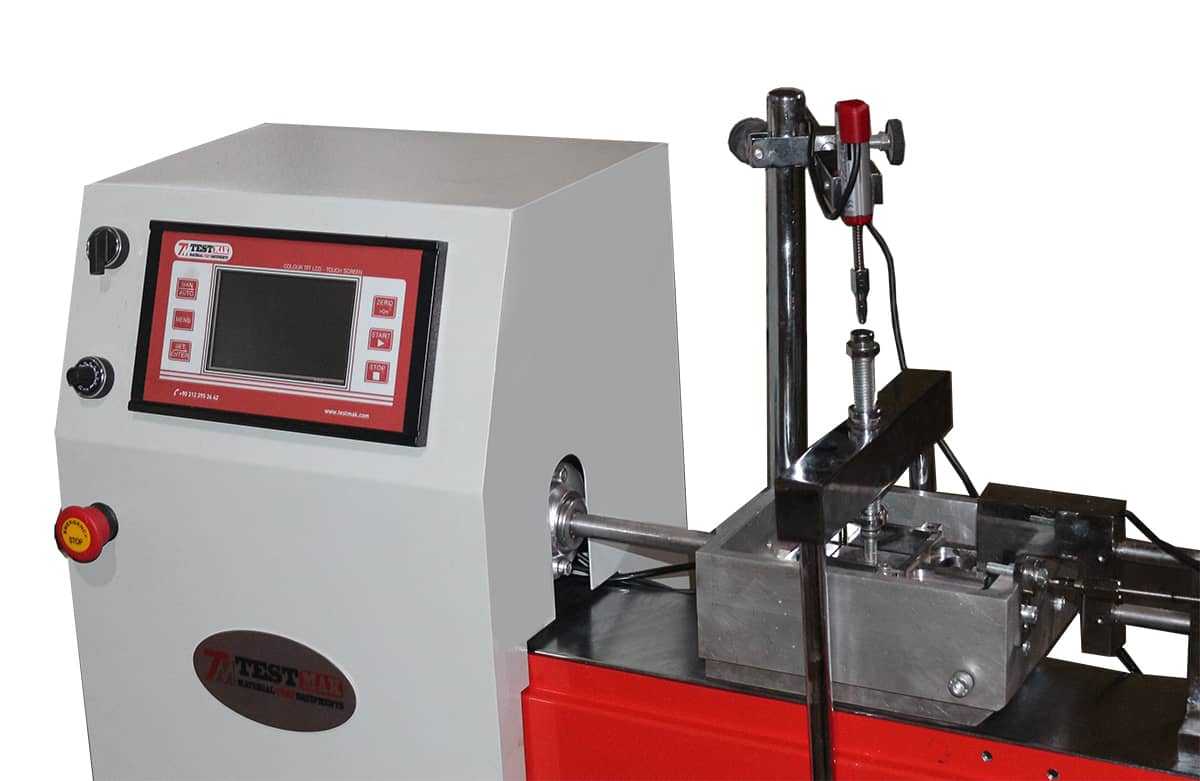

• PX6 Pro Color TFT Touch Display Supports 16M colors and supports 800x480 pixel screen resolution Data Acquisition Control System
• Software

Shearbox Assemblies, Slotted Weight Set and other optional accessories including cutting ring and extrusion dolly should be ordered separately.

Software
The digital graphic display shows real-time load-displacement or stress-displacement graphs. The software calculates both the maximum shear stress and the residual shear stress.

After at least three tests, the software calculates the cohesion value “c” and the shear resistance angle “φ” using the best-fit tangent to the Mohr circles.

PX6 Pro TFT Data Acquisition Control System
• Different menu languages can be selected via the device via language support. (Turkish, English, French, Spanish, Russian)
• 4 analog high-precision measuring capacities
• 2 analog output sockets (DAC)
• 5 digital outputs for general purpose (can pull relays and control different electrical units)
• Potentiometer input (reference signal input for calibration and remote control)
• 2 each RS 232 serial communication signal outputs (communicates with computers)
• USB communication signal output (communicates with computers)
• Connects to local networks and the Internet with Ethernet 10/100 network connection output (optional)
• Connects to portable devices via Bluetooth wireless connection (optional)
• 500 test results can be stored in internal memory
• Due to the SD (memory) card connection, a large number of test results can be stored in the device memory (40,000 test results).
• Color TFT display supports, 16M colors and supports 800x480 pixel screen resolution
• Resistive touch screen allows easy operation of device functions by touching the screen
• Access to frequently used functions with 6 membrane keypads
• The industrial standard operates with 24VDC supply voltage. Built-in voltage filter and regulator protects against input signal fluctuations
• Sensor modules are compatible with loadcell (load cell), pressure sensor (4-20 / 0-20 mA), potentiometric distance sensors, strain washers, thermocouples and all kinds of mV output sensors.
• Provides precise calibration with multi-point calibration (up to 10 points)
• Setting and calibration menus are password protected and prevent unauthorized use.
• Allows testing with a computer or device
• The device can switch between one-touch load and deformation control modes.
• Firmware updates can be made via USB input. In addition, via the computer allows remote or internet update.
