AUTOMATIC MARSHALL IMPACT COMPACTOR (ASTM)
| 49-MC469520 | Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 220-240 V 50/60 Hz |
| 49-MC469525 | Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 110 V 60 Hz |
| 49-MC469510 | Soundproof Safety Cabinet for Marshall Compactors |
| 49-CM469540 | Marshall Compaction Mould, 4 Inches |
| 49-CM469545 | Marshall Compaction Mould, 6 Inches |
| 49-CM469550 | Marshall Storage Plate for 6 pcs. for 4 Inches (101.6mm) specimens |
ORIGIN: TÜRKİYE
Standards: ASTM D1559, ASTM D6926 | AASHTO T245
| 49-MC469520 | Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 220-240 V 50/60 Hz |
| 49-MC469525 | Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 110 V 60 Hz |
| 49-MC469510 | Soundproof Safety Cabinet for Marshall Compactors |
| 49-CM469540 | Marshall Compaction Mould, 4 Inches |
| 49-CM469545 | Marshall Compaction Mould, 6 Inches |
| 49-CM469550 | Marshall Storage Plate for 6 pcs. for 4 Inches (101.6mm) specimens |
ORIGIN: TÜRKİYE
Standards: ASTM D1559, ASTM D6926 | AASHTO T245
AUTOMATIC MARSHALL IMPACT COMPACTOR (ASTM)
The Automatic marshall compactor is automatically compacts the hot asphalt mixture sample in according ASTM standards and stops after the preset number of blows.
The marshall compaction mould is held in position by a quick and practical clamping device. The slide hammer with a total weight of 4536 ±9 g, falls from a height of 457 ±3 mm with each blow and compresses the hot asphalt mix sample.
The device is produces 55 ±5 blows frequency in the 60 seconds.
Digital console is incorporating have the emergency stop button and it provides automatic complete protection for toperator safet in the instructions CE. Machine is automatically stops for safety when opened compactor cover.
The unit incorporates a compaction pedestal, comprising a laminate block secured to by a 300 mm square x 25 mm thick steel plate.

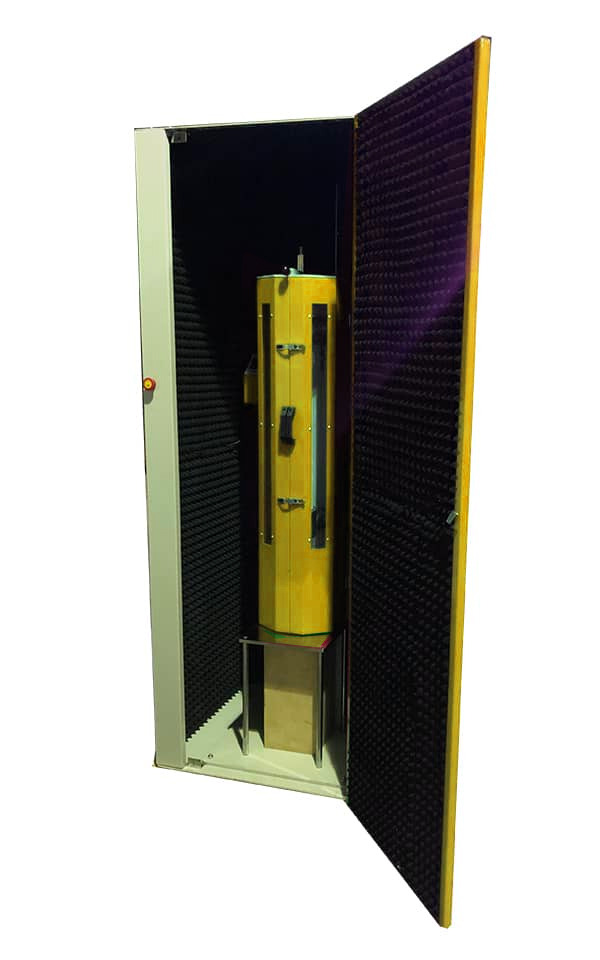

The machine can also be mounted inside a soundproof safety cabin. But this process is only done in the factory. When requested together with a soundproof safety cabin, it must be ordered separately and specified in advance.
Technical Specifications for AUTOMATIC MARSHALL IMPACT COMPACTOR (ASTM)
| Hammer Weight | 4536 ± 9 g |
|---|---|
| Free Fall Height | 457 ± 3 mm |
| Tamping Face Diameter | 98,5 mm |
| Laminated Block Dimensions | 200x200x450 mm |
| Blows Frequency | 55 ± 5 |
| Dimensions | 400x450x1870 mm |
| Weight (approx) | 140 kg |
| Power | 370 W |
ACCESSORIES AND SPARE PARTS FOR AUTOMATIC MARSHALL IMPACT COMPACTOR (ASTM)
| 49-MC469510 | Soundproof Safety Cabinet for Marshall Compactors |
| 49-CM469540 | Marshall Compaction Mould, 4 Inches |
| 49-CM469545 | Marshall Compaction Mould, 6 Inches |
| 49-CM469550 | Marshall Storage Plate for 6 pcs. for 4 Inches (101.6mm) specimens |
