CONCRETE PIPE TESTING MACHINES

The Concrete pipe testing machines are is used for compressive strength tests of concrete and steel pipes whose outside diameters are from 100 mm to 3000 mm.

Concrete pipe test machines are manufacturer of capacity of between 400 kN to 1000 kN.

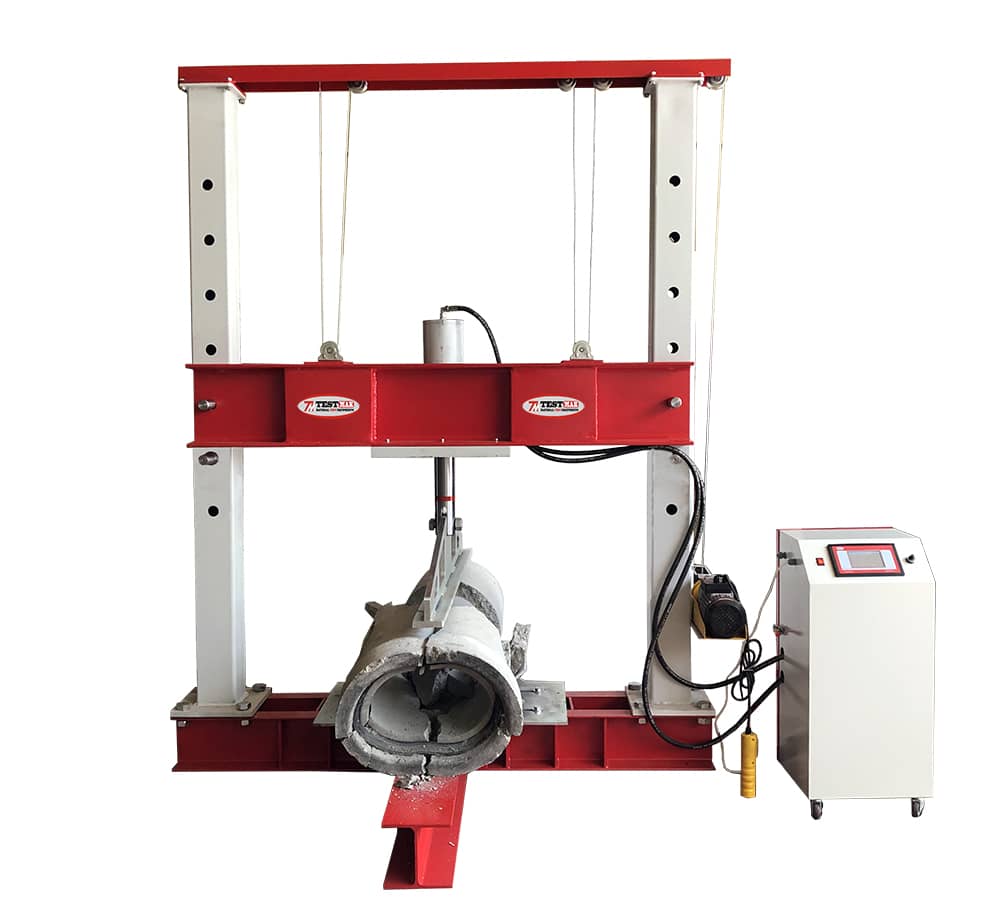

The Concrete pipe testing machines are consisting of a frame and a hydraulic power pack. The frames are rigid 2 column constructions with superior axial and lateral stiffness and are precision aligned.

Pipe test machine frames have to be anchored to concrete base. All required parts to anchor the frame to the concrete base is supplied. The frames without carriying chassis is supplied with V shaped bottom bearers which can be anchored to concrete base.

The rectangular shaped top bearer is detachable from the actuator and the bottom bearer is V-shaped with an angle of 150°. During pipe loading the system permits top bearer to rotate 360 degres at horizontal plane and allows it to move at vertical plane of a minimum value of ±8°. As an option 3- and 4-point bending accessories are available. Upper crosshead height adjustment is done with electric motor drive for easy and precise test set up and manual through locking pins are used to fix the upper crosshead.

LCD Graphics Data Acquisition and Controls System
PX6 is designed to control the machine and processing data from load cells or pressure transducers installed on the compression machine frame. Easy to read LCD graphics display and button data keypads make the unit quick and straight forward to operate. All interactions with the measuring system are via the front control panel by using simple menu-driven procedures. The PX6 digital allows real time load us time graph. At the end of the test cycle, the results can be stored in the large memory or downloaded to a PC in PX6 software format.

The PX6 control console includes a multi-valve hydraulic pump, a safety valve, a pressure relief valve and an oil regulator, which ensures maximum safety and smooth linear loading. The machine can be supplied with standard automatic power pack, dual stage, controlled by PX6.

PX6 LCD Data Acquisition Control System
• Different menu languages can be selected via the device via language support. ( English, Spanish, Russian)
• 4 analog high-precision measuring capacities
• 2 analog output sockets (DAC)
• 5 digital outputs for general purpose (can pull relays and control different electrical units)
• Potentiometer input (reference signal input for calibration and remote control)
• 2 each RS 232 serial communication signal outputs (communicates with computers)
• USB communication signal output (communicates with computers)
• Connects to local networks and the Internet with Ethernet 10/100 network connection output (optional)
• Connects to portable devices via Bluetooth wireless connection (optional)
• 500 test results can be stored in internal memory
• Due to the SD (memory) card connection, a large number of test results can be stored in the device memory (40,000 test results).
• Color TFT display supports, 16M colors and supports 800x480 pixel screen resolution
• Resistive touch screen allows easy operation of device functions by touching the screen
• Access to frequently used functions with 6 membrane keypads
• The industrial standard operates with 24VDC supply voltage. Built-in voltage filter and regulator protects against input signal fluctuations
• Sensor modules are compatible with loadcell (load cell), pressure sensor (4-20 / 0-20 mA), potentiometric distance sensors, strain washers, thermocouples and all kinds of mV output sensors.
• Provides precise calibration with multi-point calibration (up to 10 points)
• Setting and calibration menus are password protected and prevent unauthorized use.
• Allows testing with a computer or device
• The device can switch between one-touch load and deformation control modes.
• Firmware updates can be made via USB input. In addition, via the computer allows remote or internet update.
