CONCRETE POKER VIBRATORS

Concrete Poker Vibrators Gasoline powered concrete vibrator Electric Concrete Vibrators

CONCRETE POKER VIBRATORS

51-PV476700 Electric Concrete Poker Vibrator, Needle Dia. 38 mm - 220-240 V 50-60 Hz
51-PV476705 Electric Concrete Poker Vibrator, Needle Dia. 45 mm - 220-240 V 50-60 Hz
51-PV476710 Electric Concrete Poker Vibrator, Needle Dia. 60 mm - 220-240 V 50-60 Hz
51-PV476715 Gasoline-Powered Concrete Vibrator, Needle Dia. 45 mm, 5.5 HP
51-PV476720 Gasoline-Powered Concrete Vibrator, Needle Dia. 60 mm, 5.5 HP
ORIGIN: TÜRKİYE
Standards: EN 12390–2 | ASTM C31, C192 | AASHTO T23, T126
51-PV476700 Electric Concrete Poker Vibrator, Needle Dia. 38 mm - 220-240 V 50-60 Hz
51-PV476705 Electric Concrete Poker Vibrator, Needle Dia. 45 mm - 220-240 V 50-60 Hz
51-PV476710 Electric Concrete Poker Vibrator, Needle Dia. 60 mm - 220-240 V 50-60 Hz
51-PV476715 Gasoline-Powered Concrete Vibrator, Needle Dia. 45 mm, 5.5 HP
51-PV476720 Gasoline-Powered Concrete Vibrator, Needle Dia. 60 mm, 5.5 HP
ORIGIN: TÜRKİYE
Standards: EN 12390–2 | ASTM C31, C192 | AASHTO T23, T126

CONCRETE POKER VIBRATORS

Electric Concrete Vibrators
Electric Concrete vibrators are used during concrete pouring to spread the concrete on the surface and to remove air from within the concrete.

Thanks to the vibration it creates, it ensures that no air remains in the concrete. It plays an important role in increasing the strength of the concrete.

It comes with a 4-meter hose. The needle diameter is available in 38, 45 and 60mm types.

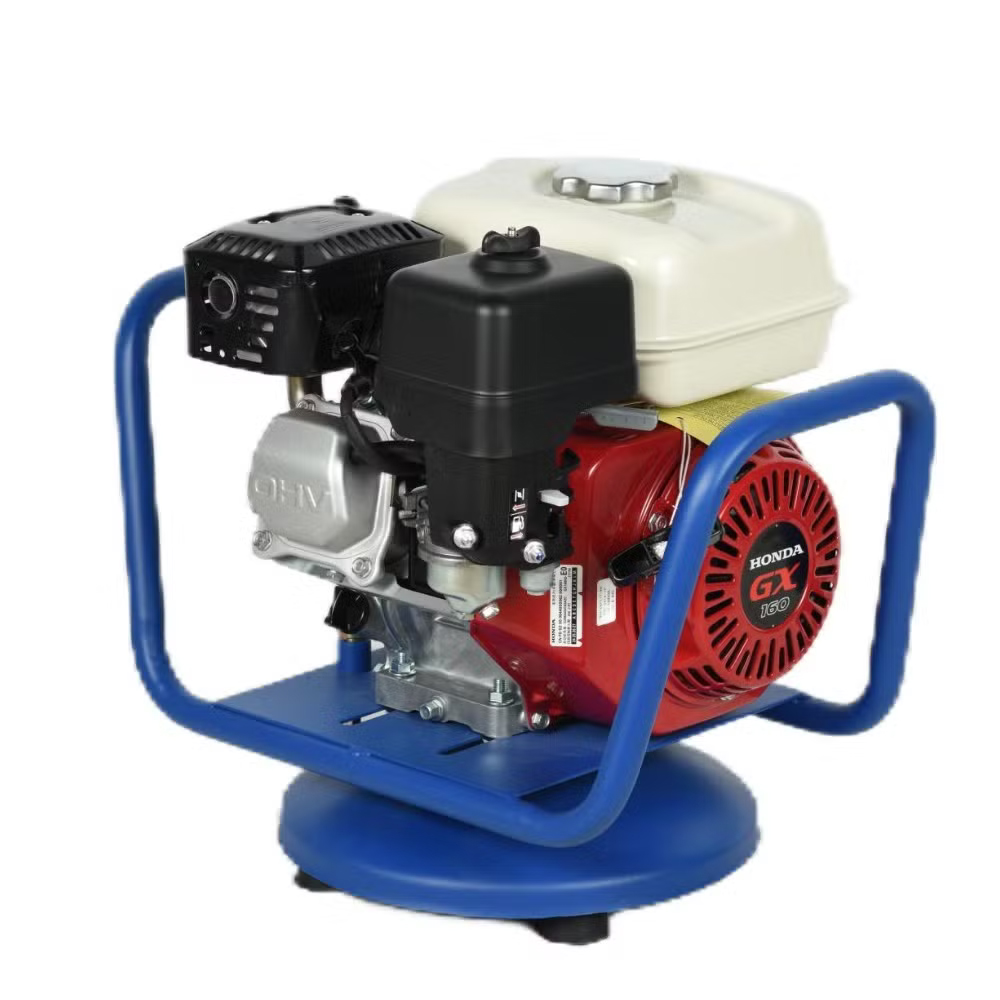

Gasoline-Powered Concrete Vibrator
Designed for maximum efficiency and durability in your construction projects, this gasoline-powered concrete vibrator with a 5.5 HP Honda engine effectively removes air bubbles during concrete pouring, creating high-strength surfaces. With a 6-meter hose and 45 mm and 60 mm needle diameter, it offers convenient use in large areas.

This vibrator stands out with its gasoline engine advantage in construction sites without access to electricity. By minimizing air voids in the concrete, it allows you to obtain stronger and longer-lasting structures.

Technical Specifications for CONCRETE POKER VIBRATORS

Product Code Electric Models Gasoline Models
Engine Power 220-240V 50/60Hz 0,55 KW Honda GX160 5.5 HP
Number of Revolutions 3000 rpm 3000 rpm
Hose Length 4 meter 6 meter
Poker Needle 38, 45 and 60 mm 45 and 60 mm
Dimensions 270x180x270 mm 500x450x400 mm
Weight 8 kg 23 kg

ACCESSORIES AND SPARE PARTS FOR CONCRETE POKER VIBRATORS

Accessories

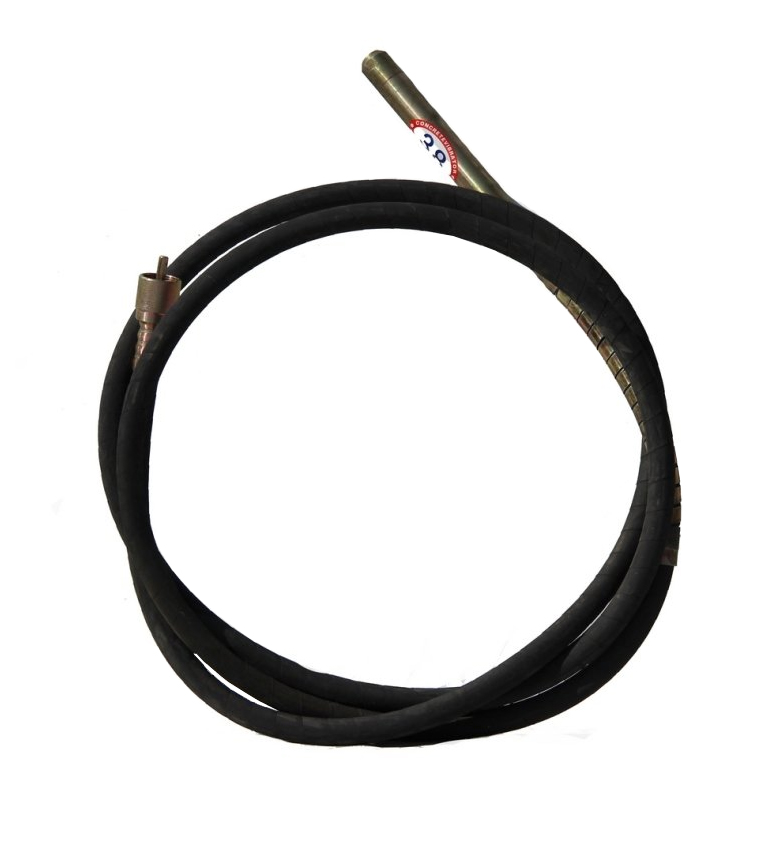

51-PV476724 Hose, 4 meter
51-PV476726 Hose, 6 meter
51-PV476728 Needle, 38 mm
51-PV476730 Needle, 45 mm
51-PV476732 Needle, 60 mm

DATASHEET CONCRETE POKER VIBRATORS

CONCRETE POKER VIBRATORS

CONCRETE POKER VIBRATORS CONCRETE POKER VIBRATORS Electric Concrete vibrators are used during concrete pouring to spread the concrete on the surface and to remove air from within the concrete. 51-PV4767
$ 400.00 In stock
