AGGREGATE
GENERAL AND GEOMETRICAL PROPERTIES OF AGGREGATES
PRODUCT CATEGORY
HIGH CAPACITY SCREEN SHAKERS
| 48-HS457530 | High Capacity Screen Shaker, 220-240 V 50-60 Hz |
| 48-HS457534 | High Capacity Screen Shaker, 110 V 60 Hz |
| 48-HS457536 | Sieve Series for Fine Gain (approximately 452*667*67 mm size of Rectangular Sieve, Between 0.075 to 6.3 mm, ASTM E11 standards) |
| 48-HS457538 | Sieve Series for Coarse Grain (approximately 452*667*67 mm size of Rectangular Sieve, Between 6.3 to 125 mm, ASTM E11 standards) |
ORIGIN: TÜRKİYE
Standards: TS EN 1339, 1367-1, EN 932-5, ISO 3310-1, TS 2824
| 48-HS457530 | High Capacity Screen Shaker, 220-240 V 50-60 Hz |
| 48-HS457534 | High Capacity Screen Shaker, 110 V 60 Hz |
| 48-HS457536 | Sieve Series for Fine Gain (approximately 452*667*67 mm size of Rectangular Sieve, Between 0.075 to 6.3 mm, ASTM E11 standards) |
| 48-HS457538 | Sieve Series for Coarse Grain (approximately 452*667*67 mm size of Rectangular Sieve, Between 6.3 to 125 mm, ASTM E11 standards) |
ORIGIN: TÜRKİYE
Standards: TS EN 1339, 1367-1, EN 932-5, ISO 3310-1, TS 2824

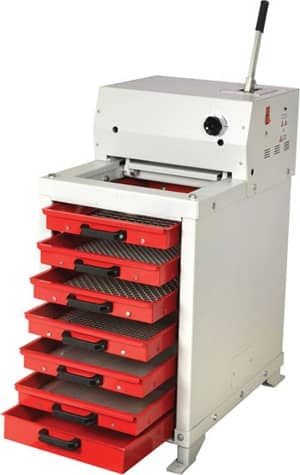

HIGH CAPACITY SCREEN SHAKERS
The High capacity screen shaker is used for sizing large quantities of crushed stone, sand, gravel, slag, coal, coke, ore, sawdust and similar materials.
The High capacity screen shaker has a sample capacity of approximately 30 lt (60 ÷ 70 Kg). It can be used with 6 sieves and lids measuring 40x60 cm.
The High capacity screen shaker is equipped with an adjustable timer up to 99 minutes. The device stops automatically after the specified time.
In accordance with CE Safety Instructions, Sound Insulated Safety Cabinet with micro switch is also available as an option. If the cabinet door is opened while the device is running, the device stops automatically. This cabinet also prevents the entry of dust. Safety Cabinet (must be factory assembled) must be ordered separately.
The sieves to be used in the device must be ordered separately.
Technical Specifications for HIGH CAPACITY SCREEN SHAKERS
| Dimensions | 585x790x850 mm |
|---|---|
| Weight (approx) | 180 kg |
| Power | 550 W |
