MARSHALL WATER BATH

49-WB469350/15	Marshall Water Bath, 15 Liters, 220-240V 50/60 Hz
49-WB469350/30	Marshall Water Bath, 30 Liters, 220-240V 50/60 Hz
49-WB469350/48	Marshall Water Bath, 48 Liters, 220-240V 50/60 Hz
49-WB469370/15C	Marshall Water Bath with Cooler Unit, 15 Liters, 220-240V 50/60 Hz
49-WB469370/30C	Marshall Water Bath with Cooler Unit, 30 Liters, 220-240V 50/60 Hz
49-WB469370/48C	Marshall Water Bath with Cooler Unit, 48 Liters, 220-240V 50/60 Hz

ORIGIN: TÜRKİYE

Standards: ASTM D1559 | EN 12697-34 | EN 13108th | D5581 | AASHTO T245

49-WB469350/15	Marshall Water Bath, 15 Liters, 220-240V 50/60 Hz
49-WB469350/30	Marshall Water Bath, 30 Liters, 220-240V 50/60 Hz
49-WB469350/48	Marshall Water Bath, 48 Liters, 220-240V 50/60 Hz
49-WB469370/15C	Marshall Water Bath with Cooler Unit, 15 Liters, 220-240V 50/60 Hz
49-WB469370/30C	Marshall Water Bath with Cooler Unit, 30 Liters, 220-240V 50/60 Hz
49-WB469370/48C	Marshall Water Bath with Cooler Unit, 48 Liters, 220-240V 50/60 Hz

ORIGIN: TÜRKİYE

Standards: ASTM D1559 | EN 12697-34 | EN 13108th | D5581 | AASHTO T245

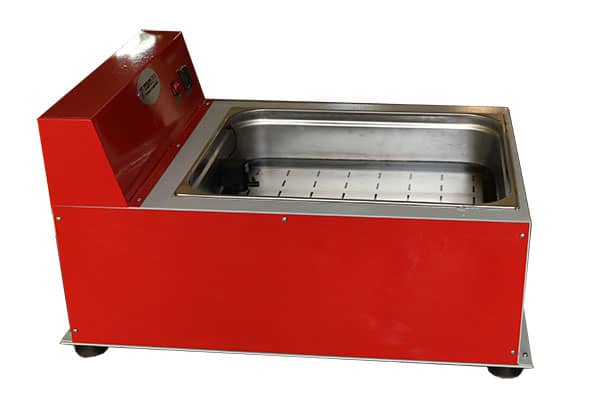

MARSHALL WATER BATH

The Marshall water baths are used in various material testing analyses.

The Marshall water baths are 15, 30 and 48 liters tank capacity models are available and can be ordered with or without cooler units.

Temperature is from ambient to 95°C. Internal surfaces are polished stainless steel with a sheet steel insulated outercase.

The EN 12697-23 covering the determination of the strength of bituminous mixtures, prescribe a water conditioning temperature of 5°C or from 5 to 25°C which are obtainable with a cooling system.

Water bath are used for asphalt (marshall, bitumen testing), cement (curing on conditioning) applications.The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity.

Model	Capacity	Int. Dimensions	Ext. Dimensions	Temperature Range	Weight (approx.)
49-WB469350/15	15 Liters	160x330x300 mm	300x500x360 mm	for ambient to +90°C ± 1°C	15 kg
49-WB469350/30	30 Liters	160x520x250 mm	300x700x380 mm	for ambient to +90°C ± 1°C	18 kg
49-WB469350/48	48 Liters	160x620x500 mm	300x820x600 mm	for ambient to +90°C ± 1°C	25 kg
49-WB469370/15	15 Liters	160x330x300 mm	625x400x600 mm	+5°C to +70°C± 0,5°C	26 kg
49-WB469370/30	30 Liters	160x510x300 mm	625x400x760 mm	+5°C to +70°C± 0,5°C	36 kg
49-WB469370/48	48 Liters	160x620x510 mm	650x620x900 mm	+5°C to +70°C± 0,5°C	48 kg

Model

Capacity

Int. Dimensions

Ext. Dimensions

Temperature Range

Weight (approx.)

49-WB469350/15

15 Liters

160x330x300 mm

300x500x360 mm

for ambient to +90°C ± 1°C

15 kg

49-WB469350/30

30 Liters

160x520x250 mm

300x700x380 mm

for ambient to +90°C ± 1°C

18 kg

49-WB469350/48

48 Liters

160x620x500 mm

300x820x600 mm

for ambient to +90°C ± 1°C

25 kg

49-WB469370/15

15 Liters

160x330x300 mm

625x400x600 mm

+5°C to +70°C± 0,5°C

26 kg

49-WB469370/30

30 Liters

160x510x300 mm

625x400x760 mm

+5°C to +70°C± 0,5°C

36 kg

49-WB469370/48

48 Liters

160x620x510 mm

650x620x900 mm

+5°C to +70°C± 0,5°C

48 kg
