AGGREGATE
GENERAL AND GEOMETRICAL PROPERTIES OF AGGREGATES
PRODUCT CATEGORY
REFLUX EXTRACTION TEST SET
| 49-RE468150 | Reflux Extraction Test Set 4000g, 220-240 V 50/60 Hz |
| 49-RE468170 | Reflux Extraction Test Set 1000 g, 220-240 V 50/60 Hz |
ORIGIN: TÜRKİYE
Standards: ASTM D2172 | AASHTO T164
| 49-RE468150 | Reflux Extraction Test Set 4000g, 220-240 V 50/60 Hz |
| 49-RE468170 | Reflux Extraction Test Set 1000 g, 220-240 V 50/60 Hz |
ORIGIN: TÜRKİYE
Standards: ASTM D2172 | AASHTO T164

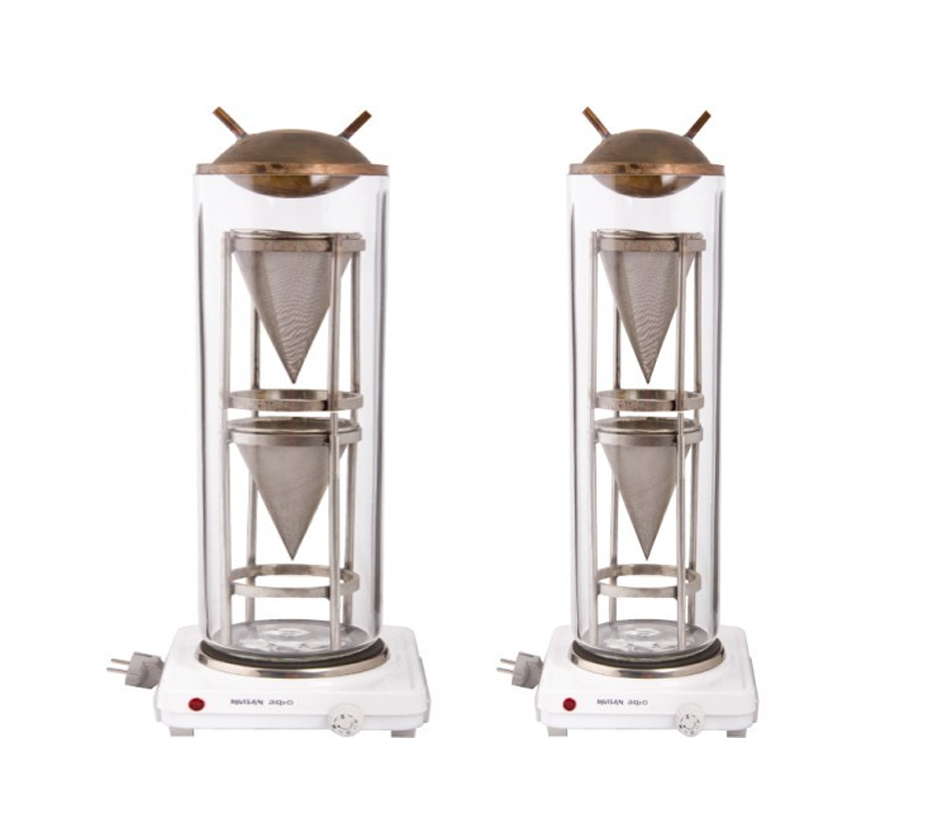

REFLUX EXTRACTION TEST SET
The Reflux Extractors are used for the quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples.
The bitumen content is calculated by difference from the weight of extracted aggregates, moisture content and ash from an aliquot part of the extract. Two models available: 1000 and 4000 g capacity.
Reflux Extractors are supplied with;
• Cylindrical Glass Extractor Jar
• Stainless steel wire mesh cone
• Brass condenser
• Iron Wire Gauze
• Hot plate
• Filter paper
Technical Specifications for REFLUX EXTRACTION TEST SET
| Model | 49-RE468150 | 49-RE468170 |
|---|---|---|
| Dimensions | 265x265x600 mm | 150x150x600 mm |
| Weight (approx) | 9 kg | 4 kg |
ACCESSORIES AND SPARE PARTS FOR REFLUX EXTRACTION TEST SET
| 49-RE468152 | Reflux Extraction Jar for 4000g Capacity Reflux Extraction Test Set |
| 49-RE468153 | Brass Condenser for 4000g Capacity Reflux Extraction Test Set |
| 49-RE468154 | Stainless Steel Wire Mesh Cone for 4000g Capacity Reflux Extraction Test Set |
| 49-RE468155 | Iron Wire Gauze 160x160mm for 4000g Capacity Reflux Extraction Test Set |
| 49-RE468156 | Filter Paper 400 mm dia for 4000g Capacity Reflux Extraction Test Set, Pack of 50 pieces |
| 49-RE468172 | Reflux Extraction Jar for 1000g Capacity Reflux Extraction Test Set |
| 49-RE468173 | Brass Condenser for for 1000g Capacity Reflux Extraction Test Set |
| 49-RE468174 | Stainless Steel Wire Mesh Cone for 1000g Capacity Reflux Extraction Test Set |
| 49-RE468175 | Iron Wire Gauze 120x120mm for 1000g Capacity Reflux Extraction Test Set |
| 49-RE468176 | Filter Paper 300 mm dia for 1000g Capacity Reflux Extraction Test Set, Pack of 50 pieces |
