VACUUM PYKNOMETER TEST SET
| 49-VP468100 | Vacuum Pyknometer (Yale) 4.3L, Aluminium, for Rice Test |
| 49-VP468105 | Large Size Heavy Duty Vacuum Pyknometer (Yale) 10 lt, for Rice Test |
ORIGIN: TÜRKİYE
Standards: EN 12697-5 | ASTM D2041
| 49-VP468100 | Vacuum Pyknometer (Yale) 4.3L, Aluminium, for Rice Test |
| 49-VP468105 | Large Size Heavy Duty Vacuum Pyknometer (Yale) 10 lt, for Rice Test |
ORIGIN: TÜRKİYE
Standards: EN 12697-5 | ASTM D2041

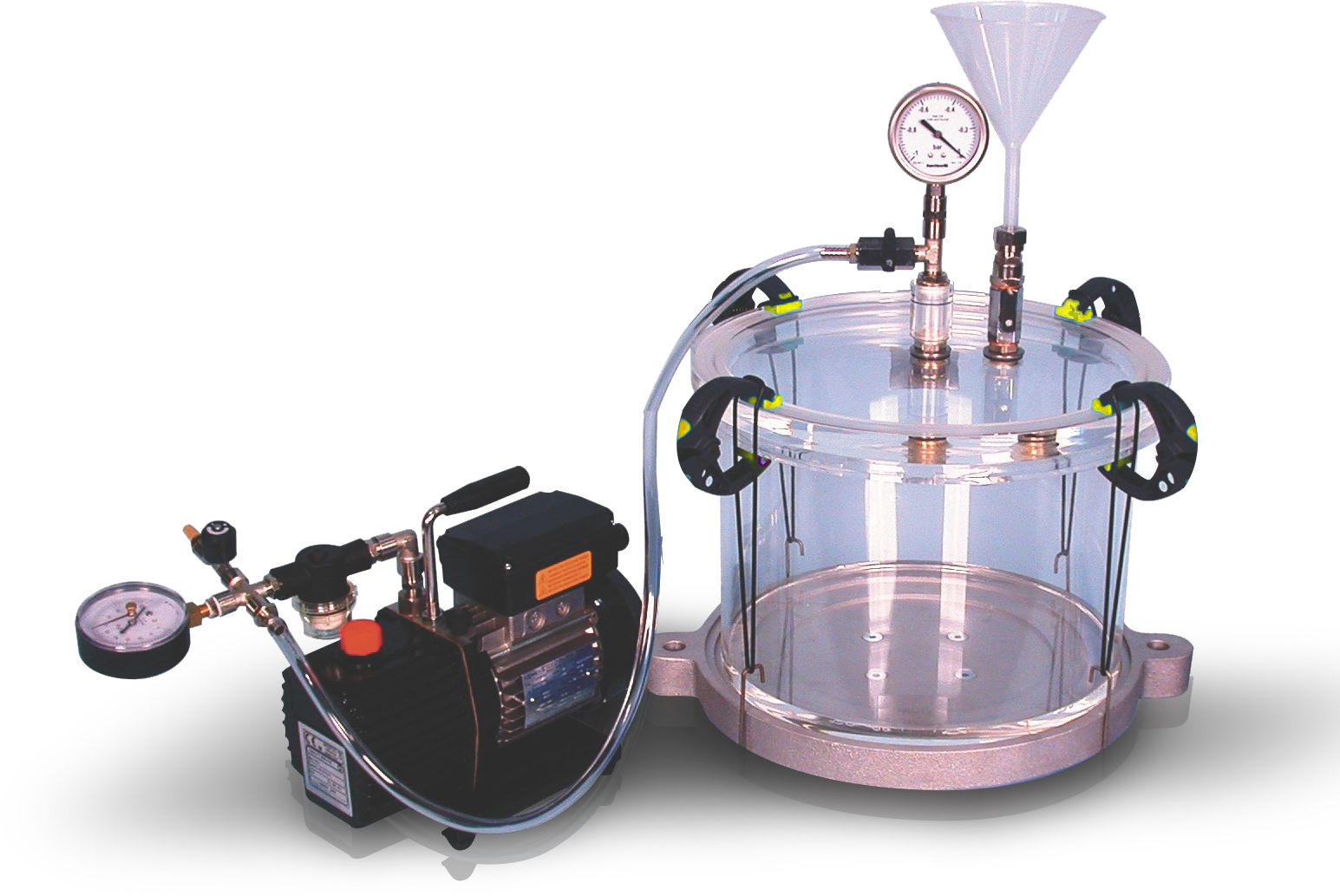

VACUUM PYKNOMETER TEST SET
The Vacuum Pyknometers (Yale Pyknometer) are used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures.
The Pycnometer can also be used for the calculation of the percent of air voids in compacted bituminous mixtures and the amount of bitumen absorbed by the aggregates.
The Vacuum Pyknometer is manufactured from transparent plastic and supplied complete with vacuum gauge on the transparent lid with O-ring.
4,3 L Vacuum Pyknometer is included aluminum volumetric canister and volumetric lid and transparent vacuum lid with O-ring and supplied complete with vacuum gauge.
Vacuum Pumps are supplied with 3m plastic tube (Ø8mm) and 2 pcs. Clamps.
Vacuum Gauge, Analog, Scale Range (-100/0 kPa), Accuracy (1.0 % of scale range), 1 kPa graduated, Ø63 mm. Supplied with a valve, 4-way dispenser and muffler.
Vibra-Dearator, Vacuum Pump and filter flask or air drying unit / water trap should be ordered separately.
Technical Specifications for VACUUM PYKNOMETER TEST SET
| Product Code | 49-VP468100 | 49-VP468130 |
|---|---|---|
| Capacity | 4,3 Liters | 10 LitersL |
| External Dimensions | 210x210x350 mm | 300x300x450 mm |
| Weight (approx) | 4 kg | 9 kg |
ACCESSORIES AND SPARE PARTS FOR VACUUM PYKNOMETER TEST SET
| 49-VP468115 | Vibro-Deaerator, Timer Controlled, 220-240 V 50-60 Hz |
| 49-VP468108 | Vacuum Pump, 51 lt/min Capacity, 220-240 V 50-60 Hz, 1ph |
| 49-VP468109 | Dual Stage Vacuum Pump 128 lt/min Capacity, 220-240 V 50-60 Hz, 1ph |
| 49-VP468110 | Vacuum Gauge, Analog, -100 kPa, 1 kPa graduated, dia: Ø 63 mm |
| 49-VP468111 | Air Drying Unit/ Water Trap, Vacuum Type |
| 49-VP468112 | Filter Flask 2500 ml |
